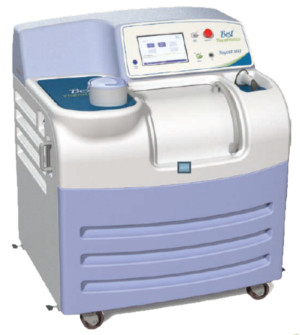

Raycell® Mk1

Raycell® Mk1

Technical Specifications :

Weight Photon Energy
650 kg (1433 lbs) 160 keV max, ∼50 keV effective energy
Floor Loading Cooling System
76 kg/cm2 (1091 lbs/in2) Self-contained cooling system — no external water required
Electrical Requirements Environmental Requirements
Single-phase 60Hz, 21A typically at 208V Temperature: 10°-30°C (50°-86°F); Relative Humidity: 5%-75%
Single-phase 50Hz, 19A typically at 230V
Dimensions
Height 1255 mm (49.4 in)
Width 1180 mm (46.5 in)
Assembled Depth 975 mm (38.4 in)
Uncrated Depth 870 mm (34.25 in)

Canister Features :

Volume 1.6 L
Diameter 173 mm (6.8 in)
Height 79 mm (3.1 in)
Estimated Number of Bags per Cycle 3 Bags, 300 ml each
Central Dose Rate ∼6.0 Gy/min
Time for 25 Gy Central Dose ∼5.3 min
Dose Uniformity 19.6 to 30.4 Gy (1.55:1)
Time for 25 Gy Minimum Dose ∼6.3 min
Dose Uniformity 25 to 38.8 Gy (1.55:1)

Options & Accessories :

  • Barcode Reader
  • Syringe Holder
  • LIMS Connection
  • Printer, USB or Network Connection
  • Additional Canisters
  • Irradiation Verification Indicators
  • Service Agreements
  • Dosimetry
  • UPS
