Please click the product you want to learn more about:

Barometers

Model DBT-100 & DBT-100T

Precision Digital Barometer / Thermometer

The Model DBT-100 is a portable digital barometer/thermometer possessing a combination of handheld calculator size, digital display, high accuracy and wide choice of units, making it ideal as a portable absolute pressure reference.

The DBT-100/T features a variety of pressure scales to enable the operator to display the atmospheric pressure in units of mmHg or mbar, as the most widely used units in radiation therapy.  It also displays ambient temperature in °C with 0.1 degree resolution.

The DBT-100 operates on 2 9-Volt alkaline batteries for 100 hours.  The TOGGLE UNITS button allows the user to choose mmHg or mbar.

The rugged, ABS molded case for the DBT-100 has been designed for handheld use in field applications.

The Model DBT-100T is enclosed in a sturdy metal enclosure for bench top application.

Model DB-705

Precision Digital Barometer

The Model DB-705 is a portable digital barometer possessing a combination of handheld calculator size, digital display, high accuracy and wide choice of units, making it ideal as a portable absolute pressure reference.

The DB-705 features a variety of pressure scales to enable the operator to display the atmospheric pressure in a variety of units, including inHg, mmHg, mb, as the most widely used units in radiation therapy.  It also displays ambient temperature in ºC and ºF with one degree resolution.

The DB-705 operates on three AA alkaline batteries for 300 hours.  The Auto-Off automatic timeout prolongs battery life, but the feature can be disabled by holding the LEAK button while pressing the ON-OFF button.  The UNITS button sequentially selects up to 16 units of measurement.  The LEAK button sequentially selects maximum reading, minimum reading and initiates a 60-second countdown for leak test.  The TARE button sets a zero reading for use as reference.

The rugged, ABS molded case has been designed for hand-held use, either in field applications or for use on the bench.  The unit has an integral folding stand.  A two-compartment soft carrying pouch is included.

Model DB-800

Reference-Class Digital Barometer

The Model DB-800 is a portable digital barometer possessing a combination of handheld calculator size, graphic LCD display, high accuracy, and wide choice of units, making it ideal as a portable pressure reference.

The DB-800 has an all-inclusive accuracy which can be relied on from one year to the next, whatever the environmental conditions.  Standard accuracy for this model is 0.05% of Full Scale within normal temperatures.

The DB-800 features a variety of pressure scales to enable the operator to display the atmospheric pressure in a multitude of units.  It also can be set to use one of a number of languages including English, Chinese, French, German, Italian, Japanese, Portuguese, Russian and Spanish.

This unit is rugged and dependable, having both a stainless steel sensor and a rubberized, weatherproof case.  The case has been designed for hand-held use, either in field applications or for use on the bench.

The DB-800 has advanced features such as Hold, Max/Min/Avg, Alarm, Scaling, and Tare to make troubleshooting easy.  The graphic display is a full 2" x 2", providing clear readings and a user-friendly interface.

Each unit is supplied with batteries, a calibration certificate and user guide.

Aneroid Barometers

Model AB-1310 Precision Barometer

The Model AB-1310 is a precision aneroid barometer that features a 5-inch open face, stainless steel case, temperature compensated movement, and a 360º dial with dual scale ranging from 920 to 1080 mb and 700 to 819 mmHg.  Linearity is ±1.3mb between 980 and 1030 hPa.  Screw adjustment compensates for altitude and ensures reading accuracy.

Thermometers

Model DBT-100 & DBT-100T

Precision Digital Barometer / Thermometer

The Model DBT-100 is a portable digital barometer/thermometer possessing a combination of handheld calculator size, digital display, high accuracy and wide choice of units, making it ideal as a portable absolute pressure reference.

The DBT-100/T features a variety of pressure scales to enable the operator to display the atmospheric pressure in units of mmHg or mbar, as the most widely used units in radiation therapy.  It also displays ambient temperature in °C with 0.1 degree resolution.

The DBT-100 operates on 2 9-Volt alkaline batteries for 100 hours.  The TOGGLE UNITS button allows the user to choose mmHg or mbar.

The rugged, ABS molded case for the DBT-100 has been designed for handheld use in field applications.

The Model DBT-100T is enclosed in a sturdy metal enclosure for bench top application.

Model DT-6410

Platinum High-Accuracy Thermometer

Thermometer displays minimum/maximum temperatures for previous 24 hours (for each hour) and previous 7-days (for each day); or previous 30 days (for each day).  Time/date key shows the exact time and date for all minimum and maximum readings.  Range: -148.00 to 199.99°F (-100.00 to 199.99°C).  Resolution: 0.01°. Accuracy: ±0.15°C. Thermometer is ideal for therapy departments.  Triple display shows current °F/°C and minimum/maximum temperatures.  Alarm is settable in 0.1° increments and signals when temperature rises above/falls below set points.  Visual LEDs and audible alarm signal continuously even if temperature returns to non-alarm range.  A 4-wire platinum sensor insures linear response and high accuracy across the entire range.  Handle probe model features stainless-steel probe, diameter 0.13", stem length 9.0", overall length 12".

Glass Thermometers

T-3 Mineral-filled Thermometer

The Model T-3 is a pocket-sized, wide-range, total-immersion, mineral-filled glass thermometer.  The red disazo-type non-toxic dye is easily viewed against the white background.  It is supplied in an aluminum protective casing with a ring on top and a pocket clip.

T-5 PerformaTherm™ filled Thermometer

The Model T-5 is a precision, total immersion, PerformaTherm™ filled thermometer designed specifically to cover a limited range of temperatures encountered in a typical radiation therapy department, thereby offering excellent resolution, combined with a short length.  Its blue liquid column is easily visible against the white background.  Includes a NIST traceable calibration certificate.

This thermometer may also be ordered with an open-face brass armored case as Model T-5A.

Digital Thermometers

Model 51

The Model 51 combines Fluke’s technical expertise in lowcost, hand-held and laboratory-grade bench-top temperature instruments to create the most advanced yet affordable thermometer, offering high accuracy, wide temperature range, and simple operation via simple, clearly-labeled push buttons on the front panel.  Features include a reading freeze function, and choice of units in Celsius or Fahrenheit.  One K-type thermocouple bead temperature probe is included.

Model 52

The Model T-5 is a precision, total immersion, PerformaTherm™ filled thermometer designed specifically to cover a limited range of temperatures encountered in a typical radiation therapy department, thereby offering excellent resolution, combined with a short length.  Its blue liquid column is easily visible against the white background.  Includes a NIST traceable calibration certificate.

This thermometer may also be ordered with an open-face brass armored case as Model T-5A.

Measuring Tools

Precision Measuring Tools

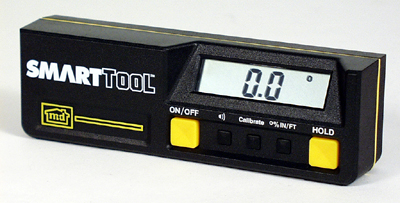

Model 200 Digital Level

Measures all angles in degrees, slope in % and pitch in in/ft.  A beeper may be activated to assist in finding level or plumb without referring to the display.  The unit powers down automatically after 5 minutes of inactivity.  Factory perfect accuracy can be maintained in the field in seconds by a simple "end-for-end" calibration procedure on level surface, overhead or plumb.

Model 631 Digital Vernier Caliper

Performs inside/outside depth and thickness measurements, deviation from reference, plug and hole comparison, all with the precision of a digital display in millimeters or inches.  Comes with a protective storage case.

Model SW-1, SW-2 Digital Stop Watch

Hand-held digital timepieces with a stop watch function feature digital precision, 24-hour timing range and a calendar.  As a stop watch they provide single action, time-in and time-out, cumulative split and continuous timing.  Additional feature of the SW-2 is a countdown function, with presettable periods from 1 second to 10 hours.  As a timepiece they provide time of day, date, alarm and hourly chime. Supplied with lanyard and instructions.

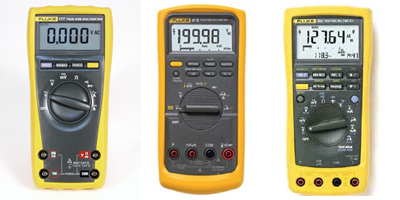

Digital Multimeters

FLUKE 177

With the Automatic Touch Hold® function, the FLUKE 177 automatically captures a measurement, beeps and locks it in the display until you are ready to view it.  The high-resolution, 6000 count digital display includes a 33-segment bar graph that reacts 10 times faster than the numerical display.  The fast auto-range feature automatically selects the range with the greatest accuracy and resolution and Range Hold locks in specified ranges.  Polarity selection is automatic.  Sleep Mode powers down the display for battery saving and all inputs are protected.  An audible tone indicates continuity and diode polarity.  Includes a pair of safety-designed right angle test leads, operator’s manual and 9V battery.

Model 87, Series V

Designed for electronic as well as industrial applications, the Model 87 is a versatile analog/digital multimeter featuring an impressive range of capabilities, including true rms, frequency of 0.5Hz to 200kHz, duty cycle from 0.0% to 99.9%, capacitance from 10pF to 9,999µF and temperature reading.  Min-Max Average recording mode stores highest, lowest and average of all readings.  Input Alert detects wrong input jack connections, and Auto Hold automatically captures the measurements.  The backlit display offers 4½ digits, 19,999 count high resolution mode, and 1ms Peak Hold.  It comes with a yellow protective holster, Flex-Stand, test leads, 9V battery and manual.

Model 289

The Model 289 is a microcomputer-based, hand-held DMM combining very precise measurement capability and a number of unique features.  The 4½-digit resolution, wide bandwidth and exceptional accuracy makes the Model 289 a superior measuring tool.  True-rms measurements yield accurate results on non-sinusoidal waveforms as well as sinewaves.  When measuring ohms, the microcomputer lets you automatically subtract lead resistance.  Low battery and overload conditions are indicated on the display.  The meter comes with TL70 test leads, 9V battery, operator’s manual and a spare fuse and includes a two-level backlight.

Cables & Reels

Extension Cables

CNMC supplies triaxial and coaxial extension cable assemblies in standard 10-meter or custom lengths, terminated with connectors to fit almost any commercially available electrometer/dosimeter and ion chamber.  The CNMC triaxial cable assemblies are made of flexible, white, 3mm diameter, shielded, low-noise, high-impedance, radiation-resistant cable, designed to carry the extremely small currents generated by ion chambers without signal degradation.

Optionally, CNMC can supply the Suhner Swiss grey, 5.34mm diameter triaxial cable found on Nuclear Enterprise Ion Chambers.  Extension cable assemblies can be made to custom lengths in 1 meter increments.  A true extension cable will have a male connector on one end to mate with the electrometer input and a female connector on the other end to mate with the ion chamber output connector.  Other configurations are possible, such as male/male to accommodate the Memorial parallel plate ion chamber, or female/female bulkhead-type connectors for through-the-wall mounting.  Additionally, a wide selection of adapters offers virtually unlimited connector arrangements.

Robust Triaxial Ion Chamber Extension Cable

Our Robust Triaxial Ion Chamber Extension Cable is custom manufactured for CNMC specifi cally for its very low noise characteristics and its durability.

This cable is ideally suited for rigorous day-to-day use.  It has a thicker outer insulation layer that makes it less susceptible to cable failures due to mechanical stress from snaking through wall conduit, being stepped on, pinched under a door, or run over by tool carts.

In addition, there is a thicker insulation layer between the center conductor of the cable and the inner shield.  This greatly reduces the effects of inherent cable capacitance, thereby minimizing the effects of internal signal loss and minimizing the effects of extraneous environmental signals.

Robust Triaxial Extension cables are supplied in standard 10-meter lengths and can be custom terminated with connectors to fit almost any commercially available electrometer and ion chamber.  Extension cables greater than 10 meters are available, as are custom cable lengths in 1-meter increments.

Small Cable Reel

CNMC cable reel assemblies offer a great convenience in winding and storage of extension cables.  A cable reel will extend the life of a cable significantly by eliminating kinks and providing protection during storage.  Only as much cable as needed has be reeled out at any time.

A cable reel will accommodate one white Microdot extension cable up to 15 meters in length or two white Microdot extension cables up to 12 meters each.  Either gender may be specified at the hub, depending on whether the cable reel will be kept at the electrometer (male connector at the hub) or inside the treatment room (female connector at the hub).

3BM-3TFM

TNC to Triax BNC

Converts a triax BNC electrometer input to TNC.  Used to connect an NE TNC terminated ion chamber to a CNMC, Victoreen or Kiethley electrometer.  Male BNC, female TNC with a threaded ring.

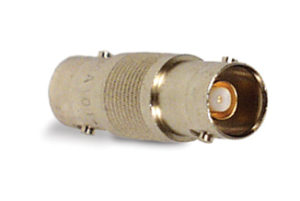

3BFFC

Triax BNC, female/female

Converts a triax BNC male to triax BNC female.  Both ends are identical; the female inserts with two plugs.

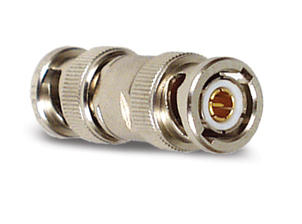

3BMMC

Triax BNC, male/male

Converts a female BNC connector on a 30-404 Memorial chamber or earlier Capintec PR-06C to a triax male for use with a triax BNC extension cable.  Both ends are identical, having male inserts each with a two-slot body.

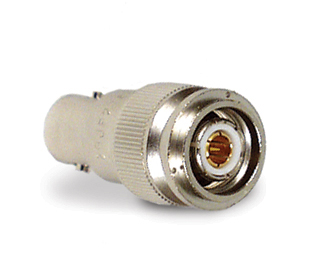

3BF-3TMF

Triax BNC to TNC

Converts a TNC electrometer input to triax BNC.  Used to connect a triax BNC terminated ion chamber to a Capintec, NE, or Wellhofer electrometer.  Female BNC, male TNC with a threaded ring.

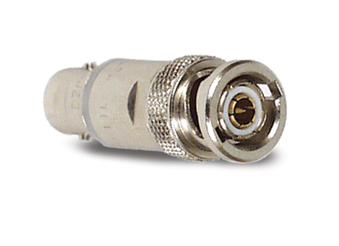

3BM-2BF

Triax BNC to Coax BNC

Converts a triax BNC electrometer input to a coax BNC.  Allows connection of a coax-terminated diode detector to a CNMC, Victoreen or Kiethley electrometer.  The electrometer bias should be disabled to avoid electrical shock hazard.  Male triax, female coax.

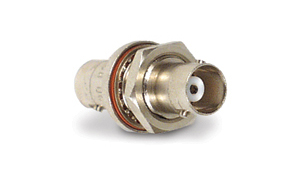

2BFFPC

Coax BNC, female/female

Converts coax BNC male to coax BNC female for panel mount feed-through applications.  Both ends are identical.

Coax BNC, male/female

Converts coax BNC male to coax BNC female for in-line applications.  Both ends are identical.

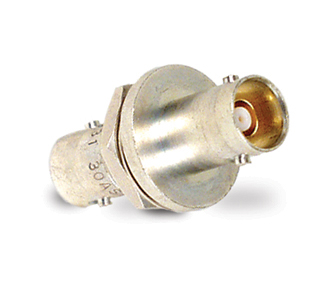

3BFFPC

Triax BNC, female/female

Converts triax BNC male to triax BNC female.  It can be mounted to a wall panel as a feed-through in conduit cable installations.  Both ends are identical; the female inserts with two plugs.

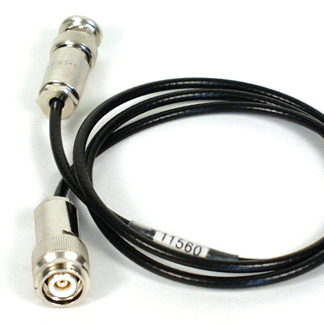

3BM-3TFF

TNC to Triax BNC

Converts a Capintec or old-style Wellhofer TNC terminated ion chamber to a triax BNC male for use with a triax BNC extension cable.  Male BNC, female TNC with threaded body (not available in single-piece adapter).

Chamber Support Stands

Chamber Support Stand

Model AL-CSS Chamber Support Stand

This ion chamber support stand has been designed to accommodate a wide variety of chambers for in-air measurements.  It is completely collapsible to take up a minimum amount of space inside a carrying case for convenient transportation and storage.

The quick-release clamps allow fast setup and easy adjustment of the ion chamber position relative to the radiation beam.  The sturdy aluminum base provides excellent stability and has adjustable feet to allow leveling on uneven surfaces.

Model AL-CSS+

Identical to the Model AL-CSS, with an additional support arm with large ring for holding HVL absorbers.

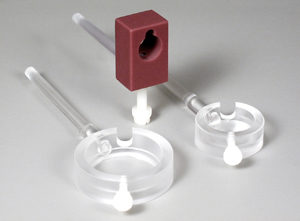

Chamber Holders

CH-1 Markus®-type Chamber Holder

Made from acrylic, this chamber holder is designed to accommodate a Markus®-type plane-parallel ion chamber including models N23343, N34045 and PPC05 securely.  The 7mm diameter, 10cm long acrylic stem fits clamps designed to hold waterproof chambers.  The acrylic cup has an inside diameter of 3cm, and the chamber is secured with a nylon set screw.

CH-2 Roos®-type Chamber Holder

This acrylic chamber holder is similar to the CH-1 but with dimensions to accommodate a Roos®-type plane-parallel ion chamber including N34001 and PPC40.  The acrylic cup has an inside diameter of 4.4cm and has no bottom.

CH-5 Cylindrical Chamber Holder

This chamber holder is made of water-equivalent plastic and is designed to securely hold cylindrical chambers with diameters from 7mm to 16mm.  The CH-5 has an acrylic stem with a diameter of 7mm and a length of 10cm.  It accomodates most waterproofing kits for Farmer-type chambers.

CH-7 Diode Holder

The CH-7 is made to securely hold Wellhofer scanning diodes with a stem diameter of 4mm in a vertical position.  The diode holder is made of water-equivalent plastic.

Markus® and Roos® are registered trademarks of PTW Freiburg and PTW New York.
